Drymatic II MKII with Y Piece Kit & Exhaust Kit

Drymatic II MKII with Y Piece Kit & Exhaust Kit

Sale Price:USD 4,995.00 Original Price:USD 5,625.00
  • Get the DRYMATIC II MKII with a Y PIECE and EXHAUST ADAPTOR KIT

  • Quiet, Intelligent & Energy-Efficient

  • Heat & Air Exchange to Optimise Drying Conditions

  • Operate in Neutral or Negative Pressure

  • Excels in Class 4 Drying Situations

  • Flexible System with a Range of Attachments

  • 25 kg - Roto-moulded - Stackable

FIND YOUR DRYMATIC STOCKIST HERE:

Contact



Quantity:
sale
Add To Cart

Description

The award winning DBK Drymatic System was developed to offer the Damage Management industry a cost-effective tool that would cater for a broad range of structural drying requirements including floor drying and moisture removal.

This kit includes

Watch these videos on how the Drymatic II can be used:




Instructional videos

Drymatic II Instructional Video - Part 1

  • How to set Up.

  • How to use the Hose Kit

  • How to use the Y Piece kit

  • How to use the Step Down Exhaust System How to utilise the Drymatic II and Drying scenarios.

Drymatic II Instructional Video - Part 2

  • How to use the screen.

How it works

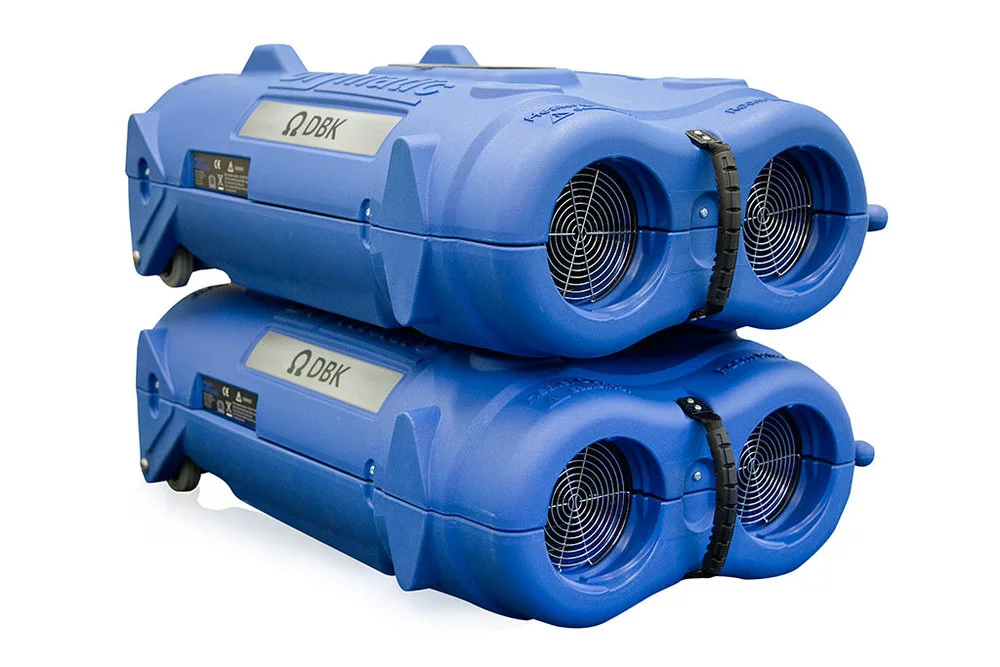

DRYMATIC II MKII

  • Quiet, Intelligent & Energy-Efficient

  • Heat & Air Exchange to Optimise Drying Conditions

  • Operate in Neutral or Negative Pressure

  • Excels in Class 4 Drying Situations

  • Flexible System with a Range of Attachments

  • Stackable Roto-moulded double skinned housing/body

  • Weight is only 25 kgs

  • Portable, plug into a 10Amp Power Outlet (no gas or diesel required)

  • Touch-safe Heater Outlet

  • Quick-fix hose connection

  • Wheels for easy manoeuvrability

  • Significantly reduces the drying life cycles

  • Enhance your Experience with the 7 Port Adaptor Kit – turn your Drymatic II into a Push/Pull cavity drying system!

Which includes 3 x grey hoses, 1 x Foil hose, 4 x roto-moulded screw in connections, 4 x Jubilee clips and a sturdy hose bag

Features

Drymatic II MKII - The right tool for the job


Recirculation Mode

The area is continuously heated up until either a temperature or humidity limit is reached.

During Recirculation Mode the Drymatic II takes air in from the Room Intake, moves it through the machine to measure Temp and RH and then reheats the air to raise ambient temperature. It stays in this mode for a maximum of two hours or until preset conditions are met.


Exhaust Mode

Exchanging the warm, humid air with warm, dry replenishment air. The Drymatic II can cycle between these modes to maximize the amount of water removed from the area.

In Exhaust Mode the Drymatic II takes air in from the Room Intake and purges it straight through the machine to outside via the Outside Exhaust. At the same time the machine takes in replenishment air from an unaffected area (Outside or another room maybe) and heats that air before pushing it in to the drying chamber.

The default cycle is 2 Hours Recirculation (Reheating) and 8 Hours Exhaust (Purging). We are working on firmware to make these timings programmable by the user as sometimes 8 hours Exhaust is overkill. However it’s better to Exhaust too often than not enough!

If you want to put the environment under slightly negative pressure the machine can go in the space being dried and you simply leave off the Outside Intake pipe and let the building space breathe naturally.

There are a number of ways to set the Drymatic II up to suit different situations and the recent launch of further connections expands the range of use further.

THE TWO SIDES OF THE DRYMATIC II MKII

  1. The side with the foil heater hose is the Heater Outlet (Heated Air). Next to that is the Room Intake (Air from Drying Chamber)

  2. On the other side of the machine is the Outside Exhaust (Wet Air from Room) and the Outside Intake (Replenishment Air).

There are two distinct modes of operation, Recirculation and Exhaust.

The adaptor kits

Drymatic II Y Piece Adaptor Kit

The Y-piece splitter allows you to split your airflow into separate chambers/rooms from the Drymatic II. This Y-Piece allows you do duct the controlled heated airflow into 2 areas.
INCLUDED Y Piece Adaptor 3 x 5m 150mm Hose 3 x Jubilee Clips 1 x 150mm to 150mm Joiner 1 x Carry Bag

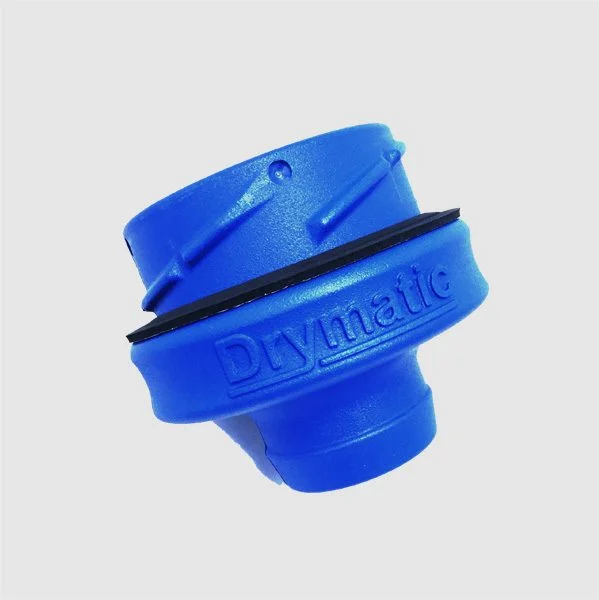

Drymatic II Exhaust Adaptor Kit

The Exhaust Adaptor allows the Drymatic II exhaust outlet to be reduced from 150mm to 100mm which allows you to exhaust your Drymatic II into a downlight, toilet window vent etc.
INCLUDED 1 x 150mm to 100 Reducer Adaptor 2 x Jubilee Clips 1 x 6m of 100mm Hose

Kitchen Kit

INCLUDED 14 x 38mm to 25mm Step Down Connectors and 2.5m of 25mm Black Hose


The kit


Accessories
